Custom FPC · Prototype to Production

Flex PCB Manufacturer

Get custom flexible PCBs manufactured to your space, bending, and assembly requirements. LZJPCB supports 1–8 layer flex circuits with PI, PET, and LCP material options, coverlay, stiffeners, and engineering review to reduce manufacturing risks.

  • 1–8 Layer Flex PCBs
  • 0.06–0.4 mm Finished Thickness
  • Custom Coverlay & Stiffeners
  • 100% Electrical Testing
Structure selection

Flex PCB Types We Manufacture

Choose the right flexible PCB for your layer count, available space, bending requirements, and component assembly needs.

01 · Single & Double-Sided Single & Double-Sided Flex PCB
  • Layer Count: 1–2 Layers
  • Finished Thickness: 0.06–0.20 mm
  • Base Materials: PI, PET, LCP
  • Min Trace/Space: 2/2 mil
02 · Multilayer Multilayer Flex PCB
  • Layer Count: 3–8 Layers
  • Finished Thickness: 0.15–0.40 mm
  • Min Mechanical Drill: 0.10 mm
  • Surface Finishes: ENIG, OSP, Immersion Tin
03 · HDI HDI Flex PCB
  • Layer Count: 3–8 Layers
  • Min Trace/Space: 2/2 mil
  • Min Laser Microvia: 0.075 mm
  • HDI Structure: 1+N+1, 2+N+2
04 · Ultra-Thin Ultra-Thin & Thin Flex PCB
  • Finished Thickness: 0.06–0.15 mm
  • Layer Count: 1–2 Layers
  • Base Materials: PI, PET, LCP
  • Copper Thickness: 12–35 μm
05 · Transparent Transparent Flex PCB
  • Layer Count: 1–2 Layers
  • Base Materials: Transparent PET
  • Substrate Thickness: 0.075–0.125 mm
  • Min Trace/Space: 2/2 mil
06 · Heavy-Copper Heavy-Copper Flex PCB
  • Layer Count: 1–2 Layers
  • Copper Thickness: 2–4 oz
  • Copper Foil: RA, ED
  • Finished Thickness: 0.15–0.40 mm
07 · Stiffeners Flex PCB with Stiffeners
  • Flex PCB Layers: 1–8 Layers
  • Stiffener Materials: PI, FR4
  • Stiffener Thickness: 0.10–0.50 mm
  • PCB Assembly: SMT & Component Integration
08 · Dynamic Dynamic Flex PCB
  • Layer Count: 1–2 Layers
  • Finished Thickness: 0.06–0.20 mm
  • Copper Foil: Rolled Annealed (RA)
  • Dynamic Bend Radius: ≥20× Finished Thickness
Substrate decision

Flex PCB Materials You Need to Know

Choose the right flex PCB material for your bending requirements, operating temperature, electrical performance, and budget.

Primary FPC Family
Polyimide (PI) Flex PCB

Get heat-resistant, flexible circuits for compact electronics, multilayer designs, and applications requiring controlled bending performance.

  • High-temperature processing compatibility
  • Multilayer & fine-pitch circuit support
  • RA copper, coverlay & stiffener options
High-Frequency Route
LCP Flex PCB

Meet your high-frequency and moisture-sensitive design requirements with low-moisture-absorption LCP substrates and controlled electrical properties.

  • Low moisture absorption
  • High-frequency & RF applications
  • Controlled impedance & dielectric performance
Cost-Effective Option
PET Flex PCB

Reduce material costs for lower-temperature applications with lightweight, thin, and flexible polyester circuits.

  • Cost-effective flexible substrate
  • Thin & lightweight circuit designs
  • Low-temperature assembly processes
Local reinforcement

Flex PCB Coverlay & Stiffener Options

Protect your flexible circuits and reinforce connector or component areas with custom coverlay and stiffeners matched to your design.

Reinforcement

Flex PCB Stiffeners

Keep your connectors secure and component areas supported without restricting the sections your flex PCB needs to bend.

  • Polyimide (PI) & FR4 stiffeners
  • Custom thickness & placement
  • ZIF connector & SMT support
  • Bend-area clearance control
Copper Protection

Flex PCB Coverlay

Protect your copper traces from abrasion and electrical exposure while keeping pads and contacts accessible for assembly.

  • Polyimide coverlay & custom openings
  • Precision pad & finger alignment
  • Controlled adhesive & lamination
  • Custom bend-area coverage
Released dimensions

Flex PCB Thickness, Copper & Via Options

Match your flex PCB thickness, copper weight, and via structure to your bending, electrical, and assembly requirements.

Finished Construction

Flex PCB Thickness

Keep your circuits thin and flexible while reinforcing areas that require connector or component support. Finished flex thickness ranges from 0.06 to 0.40 mm.

  • Thin stackups for your bending requirements
  • Controlled thickness changes to reduce stress
  • Custom stiffeners for mounting and insertion support
Interconnection Plan

Flex PCB Copper Thickness & Via Options

Balance current capacity, routing density, and flexibility with suitable copper thickness and via structures.

  • Rolled annealed (RA) & electrodeposited (ED) copper
  • Copper thickness matched to current and bend radius
  • Plated through-holes, blind & buried vias
  • Keep vias outside active bending zones
First-pass release

Flex PCB Design & DFM Support

Reduce bending failures and assembly risks with engineering reviews of your flex PCB layout, stackup, coverlay, and stiffener requirements.

Manufacturing Checklist

Flex PCB Design & DFM Guidelines

Keep your flexible circuits reliable through bending with proper trace routing, copper selection, and bend-area design.

  • Static & dynamic bend radius review
  • Traces perpendicular to bend lines
  • Vias & pads outside active bend zones
  • Staggered copper & smooth trace transitions
CAD Handoff

Flex PCB Design File Review

Get your KiCad, Altium, or other PCB design exports reviewed for manufacturing and assembly compatibility before production.

  • Gerber, ODB++ & drill file review
  • Stackup, copper & thickness verification
  • Coverlay openings & stiffener drawings
  • Bend zones, connectors & assembly notes
Use-case architecture

Flex PCB Applications

Fit your circuits into curved, compact, or moving assemblies with flexible PCBs designed for your space, bending, and electrical requirements.

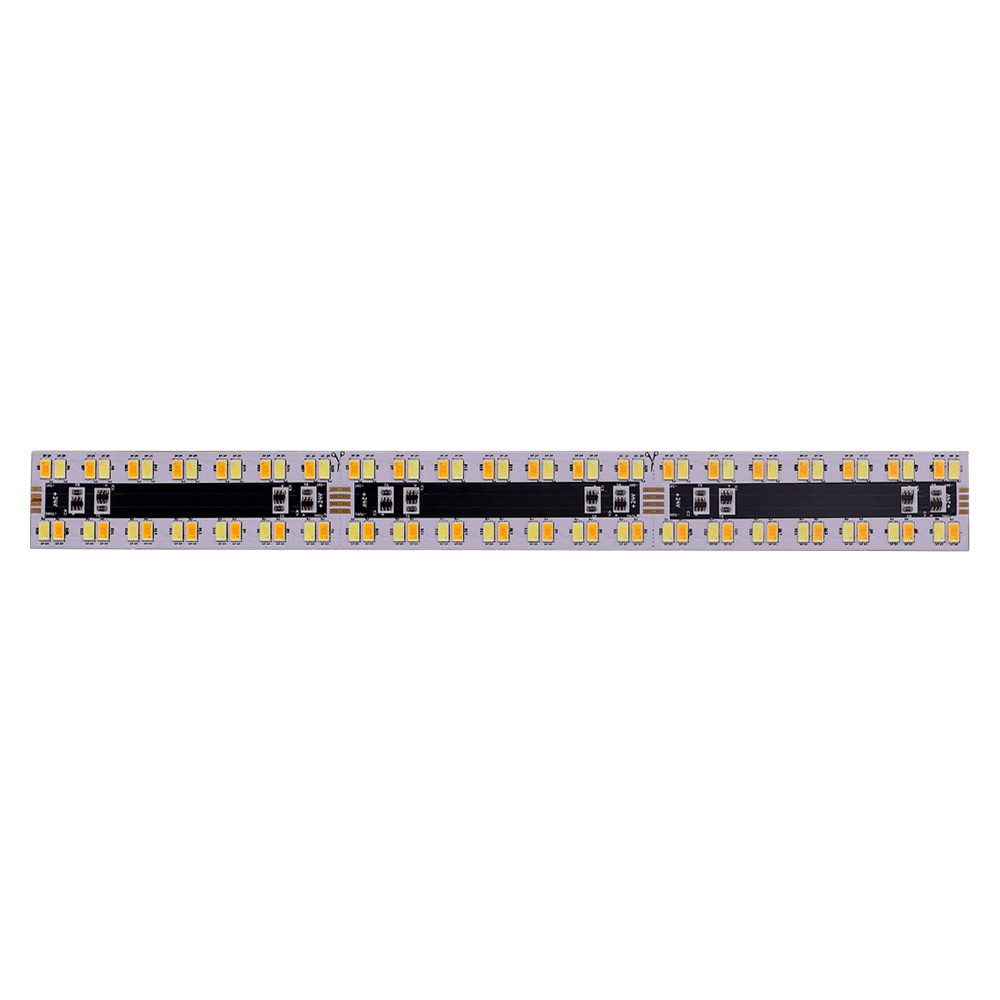

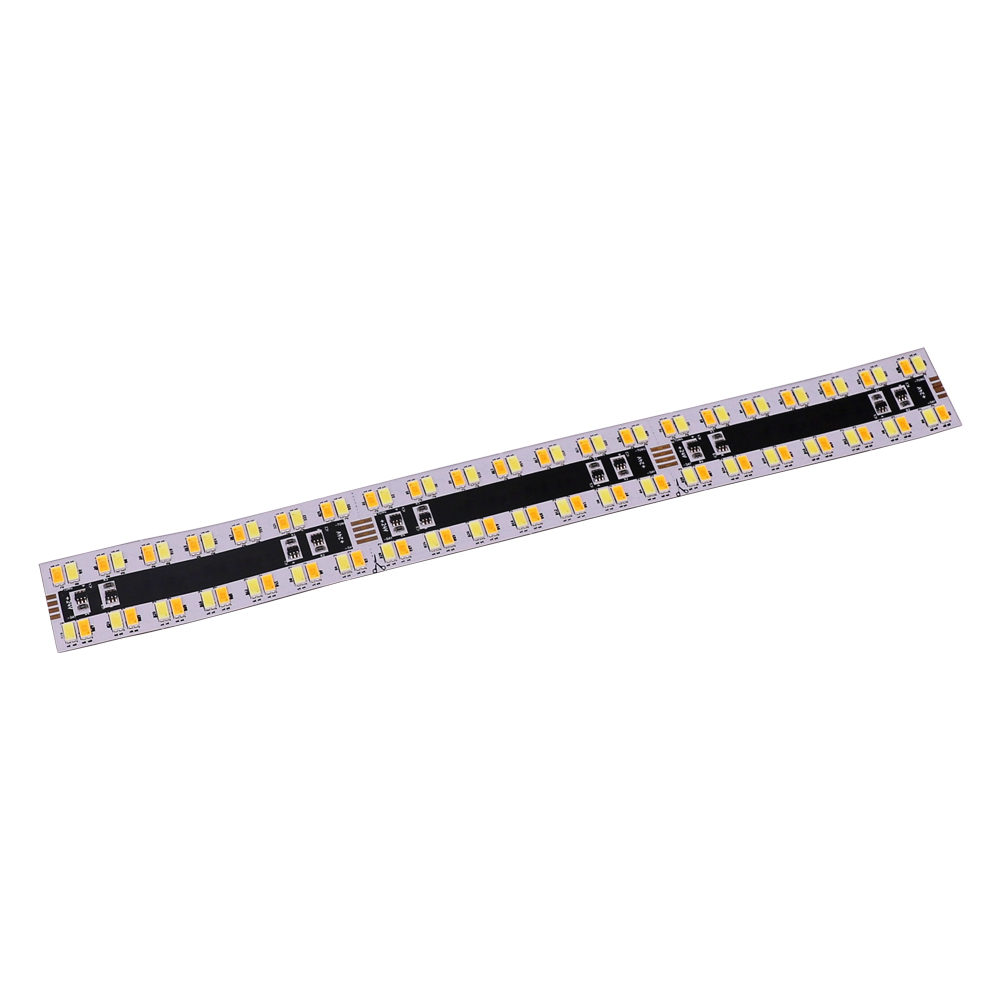

Flexible LED PCB

Fit your LED circuits into curved housings and narrow lighting channels with custom flex PCBs designed for LED spacing, current capacity, and thermal management.

  • Custom LED spacing & current capacity
  • Copper sizing for thermal management
  • Curved housings & narrow channels
  • Pad support & surface finish options

Flexible Circuit Cables & Harnesses

Replace bulky wiring with thin, custom-shaped flexible circuits that simplify board-to-board connections and fit into tight spaces with reinforced connector areas.

  • Flat repeatable routing patterns
  • Reinforced connector & finger areas
  • Shielding options available
  • 100% electrical test included
Prototype to production

Flex PCB Prototyping & Quick-Turn Manufacturing

Get custom flex PCB prototypes to validate your design, or request expedited manufacturing when your project schedule is tight.

Evidence-first sample

Flex PCB Prototyping

Validate your flex PCB's fit, bend geometry, and connector support before moving into production.

  • Bend radius, coverlay & stiffener checks
  • 1–8 layer flex PCB manufacturing
  • AOI, dimensional & 100% electrical testing
Fixed-date commitment

Quick-Turn Flex PCB Manufacturing

Need your flexible PCBs fast? Get rapid engineering review, material availability checks, and an expedited production schedule for your design.

  • Gerber, stackup & DFM checks
  • PI materials, coverlay & tooling availability
  • Priority production & confirmed lead time
Risk-controlled release

Flex PCB Quality Control & Reliability Testing

Keep your flexible circuits reliable through bending and assembly with inspections covering copper traces, coverlay, stiffeners, dimensions, and electrical performance.

Quality Checks for Your Flexible Circuits

Your flex PCBs are inspected throughout manufacturing to detect defects before assembly or delivery.

01
Material & Lot Verification

Verify base films, copper foil, adhesives, and material traceability.

IQC
02
Circuit & Via Inspection

AOI for fine traces and alignment, with specified via inspection.

AOI
03
Coverlay & Stiffener Inspection

Check pad openings, bonding, stiffener alignment, and thickness.

MEASURED
04
Bend Reliability Testing

Static and dynamic bend testing to specified radii and cycles.

BEND
05
Dimensional & Surface Inspection

Verify board outlines, thickness, contact fingers, and finishes.

DIMENSIONAL
06
100% Electrical & Final Inspection

Test circuit continuity and isolation, followed by final visual inspection.

100% E-TEST
WHY LZJPCB

Why Choose LZJPCB for Flex PCB Manufacturing

With 20 years of PCB manufacturing experience, 50+ engineers, and 5,000+ PCB/PCBA projects, LZJPCB supports your custom flex circuits from prototype to volume production.

Flex PCB Manufacturing Expertise for Your Custom Designs
20Years Experience
50+Engineers
5,000+PCB/PCBA Projects

Get your flexible circuits manufactured with engineering support, custom materials, and precision production processes tailored to your bending and assembly requirements.

01
Flex PCB Engineering & Customization

Material selection, bend-area engineering, custom coverlay, and stiffener options.

02
PCB Manufacturing & Assembly in One Place

Flexible PCBs fabricated, assembled, and tested through one supplier.

03
From Flex PCB Prototypes to Volume Production

Validate designs with prototypes, then scale with consistent manufacturing.

Approved evidence format

Flex PCB Case Studies

See how custom flex PCB manufacturing addresses bending, connector integration, and high-density routing challenges.

Case Study 01

Curved LED Flex PCB

For a curved automotive ambient lighting strip, custom flex layouts with controlled copper thickness achieved a 5mm bend radius across 2,000 units.

View Case Study
Case Study 02

Connector-to-Connector Flex PCB

For a wearable device interconnect, PI stiffeners and reinforced connector areas maintained continuity through 10,000 bend cycles on 500 pieces.

View Case Study
Case Study 03

Multilayer Flex PCB for Compact Electronics

For a compact medical sensor module, a 6-layer flex stackup with precision coverlay alignment passed electrical inspection on 1,000 boards.

View Case Study
Flex PCB Price Estimator

Flex PCB Cost Calculator

For an exact build quote, email jayden@lzjpcb.com or upload your files below.

Board Specifications
W
×
H
Bend Type
Coverlay & Surface Finish
Stiffener & Options
Lead Time
Flex PCB Estimate
ESTIMATED TOTAL COST
$235
Estimate Range: $197 – $282
$23.50 / unit
Cost Breakdown
Tooling & Setup Fee $160.00
Board Cost (10 pcs) $39.15
Subtotal $199
Lead Time Multiplier ×1.18
Total Estimate $235
Estimates are indicative only (±15–20%). Final pricing depends on DFM review, exact bend zones, coverlay openings, stiffener placement, and panelization efficiency.
Get an Exact Flex PCB Quote Upload Gerber & Request Quote
Bare board to PCBA

Flex PCB Assembly & Soldering

Get your flexible PCBs assembled and soldered with precision placement, custom support fixtures, and controlled thermal processes to protect your circuits during production.

One Controlled Package

Flex PCB Assembly

Your flexible circuits are supported during component placement and inspection to reduce deformation, misalignment, and assembly defects.

  • SMT, THT & BGA Assembly
  • 01005, QFN, 0.35 mm BGA & PoP
  • Custom Fixtures & Stiffener Support
  • 3D SPI, AOI & X-ray Inspection
Flex PCB Assembly →
Thermal and Strain Control

Flex PCB Soldering

Protect your flex PCB pads and components from excessive heat and mechanical stress with controlled soldering processes.

  • Reflow, Selective & Hand Soldering
  • Material-Specific Thermal Profiles
  • Temperature & Solder-Joint Control
  • Pad-Lift & Solder-Joint Inspection
Flex PCB Soldering →
Request a Quote

Get a Flex PCB
Manufacturing Quote

WeChat

Scan to add us on WeChat

Online
Scan this QR code to add LZJPCB on WeChat

Open WeChat → Scan QR Code

Send an Inquiry

Fill in the form below and our team will get back to you within 24 hours.

Upload your files

Gerber, ODB++, PCB, BRD, ZIP, PDF, images

Browse Files
Sending your message...

Protect your designs with NDA support.

Buyer questions

Frequently Asked Questions About Flex PCB

Direct answers for material and structure selection, tied to the released fabrication data.

What Is a Flex PCB?

A flex PCB uses conductive copper on a flexible dielectric film so the circuit can bend, fold or fit a three-dimensional assembly. A complete build defines the material, layer stack, copper, coverlay, stiffeners, bend area and electrical test.

Is FR4 Used in Flex PCBs?

The flexible region of a true FPC uses a flexible film such as Polyimide, PET or LCP. FR4 is used as a local stiffener beneath connectors or components, or as the rigid region of a separate rigid-flex design. FR4 does not replace the moving film in a dynamic flex zone.

What Is Dynamic Flex PCB?

A dynamic flex PCB is designed for repeated bending cycles in service. It uses rolled annealed (RA) copper, minimum trace widths, and bend-radius controls to extend flex life. The build record states the approved radius, copper direction and target cycle count.

What files do I need to get a flex PCB quote?

Send Gerber or ODB++, NC drill files, stackup, coverlay and stiffener drawings, bend notes, BOM if assembly is required, and your target schedule. The more complete your package, the faster and more accurate the quotation.

Ready for a released flex construction?

Send the fabrication data, material, layer count, thickness, copper, coverlay, stiffener, bend condition, quantity and assembly files.

Start Your Flex PCB RFQ
